FIAT
BARCHETTA 1996.1

Images

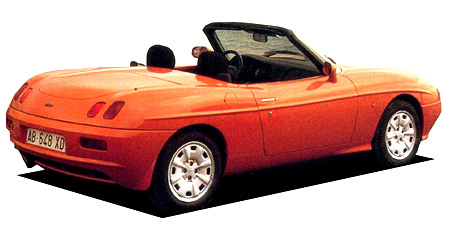

FIAT BARCHETTA

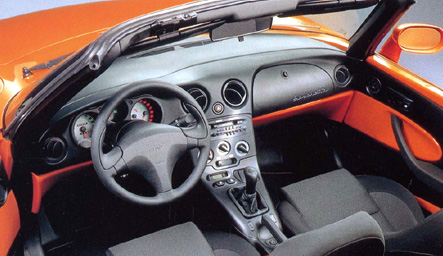

FIAT BARCHETTA
FIAT BARCHETTA
Description

Modification

BASEGRADE

Chassis ID

E-183A1

Dates releasing

1996.1

Base price, ¥

2,700,000

Body size

3920 x 1640 x 1265 mm

The size of the passenger compartment (LxWxH), mm

----x----x----mm

Wheelbase mm

2275mm

Track front / rear wheels, mm

1410mm / 1405mm

Full weight,kg

1090kg

Body type

Open

Number of doors/seats

2 door
Engine

Model

----

Type

inline 4 cylinder DOHC 16-valves

Bore x course of the piston, mm

82mmx82.7mm

Engine Size

1746cc

Compression ratio

----

Fuel injection system

Electronically controlled fuel injection system

Maximum power hp / t.min.

130ps(96kW)/6300rpm

Maximum torque, Nm / rpm

16.7kg m(164N m)/4300rpm

Supercharger

--

Fuel tank capacity, liters

50 l

Fuel

Regular unleaded gasoline

Fuel consumption, l/100 km

-
Safe equipment

Driver's air bag

Front passenger air bag

Side airbags

ABS

TRC

Safety belts with tensioner

Safety belts with efforts' limiters

Safety belts with holding

The mechanism of fixation of children's seats

Safety planks

Brake assist

The design of the body, providing energy absorption and dispersion of strike

EBD

Anti theft device

Additional equipment

Steering and suspension

Steering

Power assist equipped rack&pinion

Front suspension

McPherson Strut

Rear suspension

トレーリングアーム

Front brake

disk

Rear brake

disk

Front wheel

195/55R 15

Rear wheel

195/55R 15

The minimum diameter of a turn

----m
Comfort

Air conditioner

マニュアル

Power window

Central switch

Steering column length

Steering column height

Cruise control

Finishing leather steering wheel

leather seats

Power front seat

Power rear seat

Wood panel

Sunroof

alloy wheels

オプション設定無

Folding seat

It is not

Glass with a UV filter

Toned glasses

Gearbox

Number of steps / Type

5MT

Drive

5MT

LSD

Exterier equipment

Front fog lights

Rear fog lights

Xenon headlights

Additional front headlights

Front / rear spoiler

/

Rear wiper

Navigation, audio and video

Navigation

Navigational device

NO

Audio

CD-player

Gear ratio

CVT

1

2

3

4

5

6

7

REVERSE

Final drive

3.909
2.238
1.520
1.156
0.946
-
-
-
3.909
Original car colours
black
white
green
Maroon (Brown)
Olive
Navy blue
Purple
Ashes
Other Yellow
